Build Attacker VM AMI

Overview

We created an AMI with the attacker tools pre installed. This includes aws cli, terraform. cloudgoat, pacu, and their dependencies. This AMI is available in a CloudFormation template here. This AMI can be used to run any of the AWS control plane attack scenarios. The AMI is already setup with the Vectra SSO profile for aws cli.

Notes

  • The AMI is private and only available in the vectra-se-dev (257321424819) account

  • The AMI is only available in us-west2

  • The AMI is based on Ubuntu

  • The Attacker VM must be in a different AWS account than the target

Creating a Key Pair

The EC2 instance created by the CloudFormation template requires a key pair. Before launching the CFT stack a key pair should be created.

To create a key pair search “key pairs” in the AWS

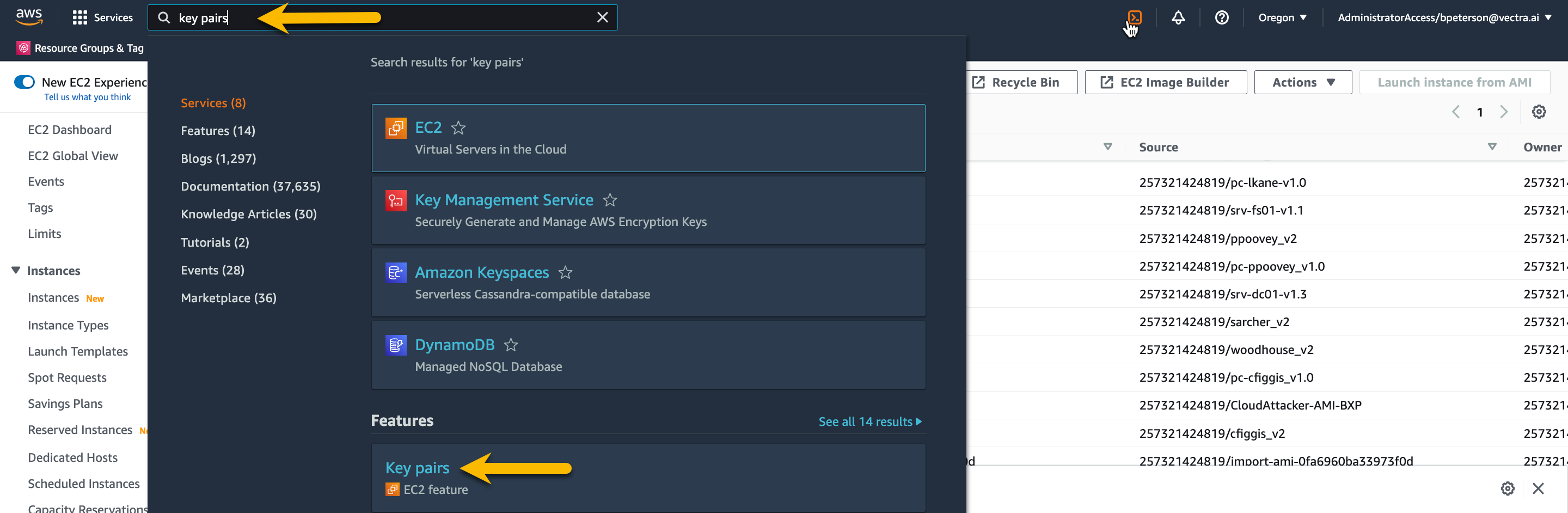

  1. In the AWS Management Console navigate to the Key pairs page by typing key pairs in the search field and choose the key pairs EC2 feature. Do NOT choose the AWS Key Management Service.

    KeyPairs

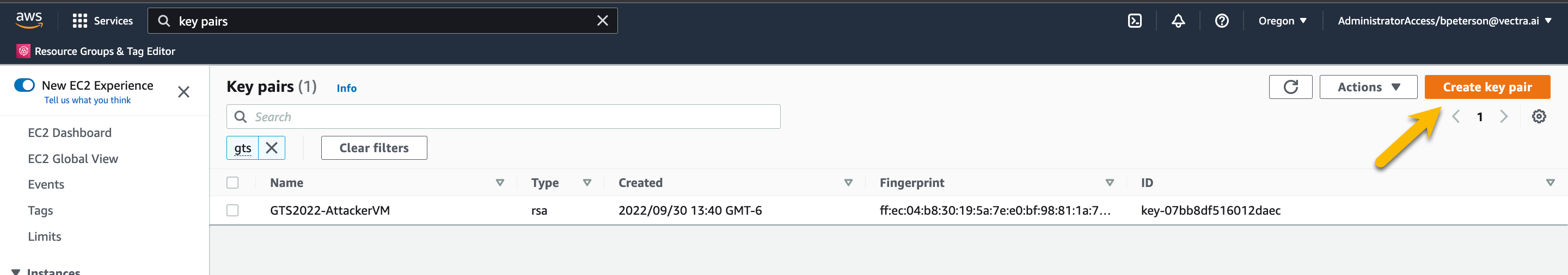

  2. On the Key pairs page press Create key pair on the top right

    CreateKeyPair

  3. On the Create key pairs page name your key GTS2022-AttackerVM-INITIALS

  4. For Key pair type choose RSA (default)

  5. For Private key file format choose the appropriate type for your SSH client

  6. Press Create key pair. When you create the key pair a download will start of the private key. You will need this key to SSH to your attacker VM. Do not lose this key! This key is not stored anywhere else!

    CreatePair

Creating Attacker VM from CloudFormation Template

Now that we have a key pair we are ready to start the CFT stack.

  1. First download the CFT here

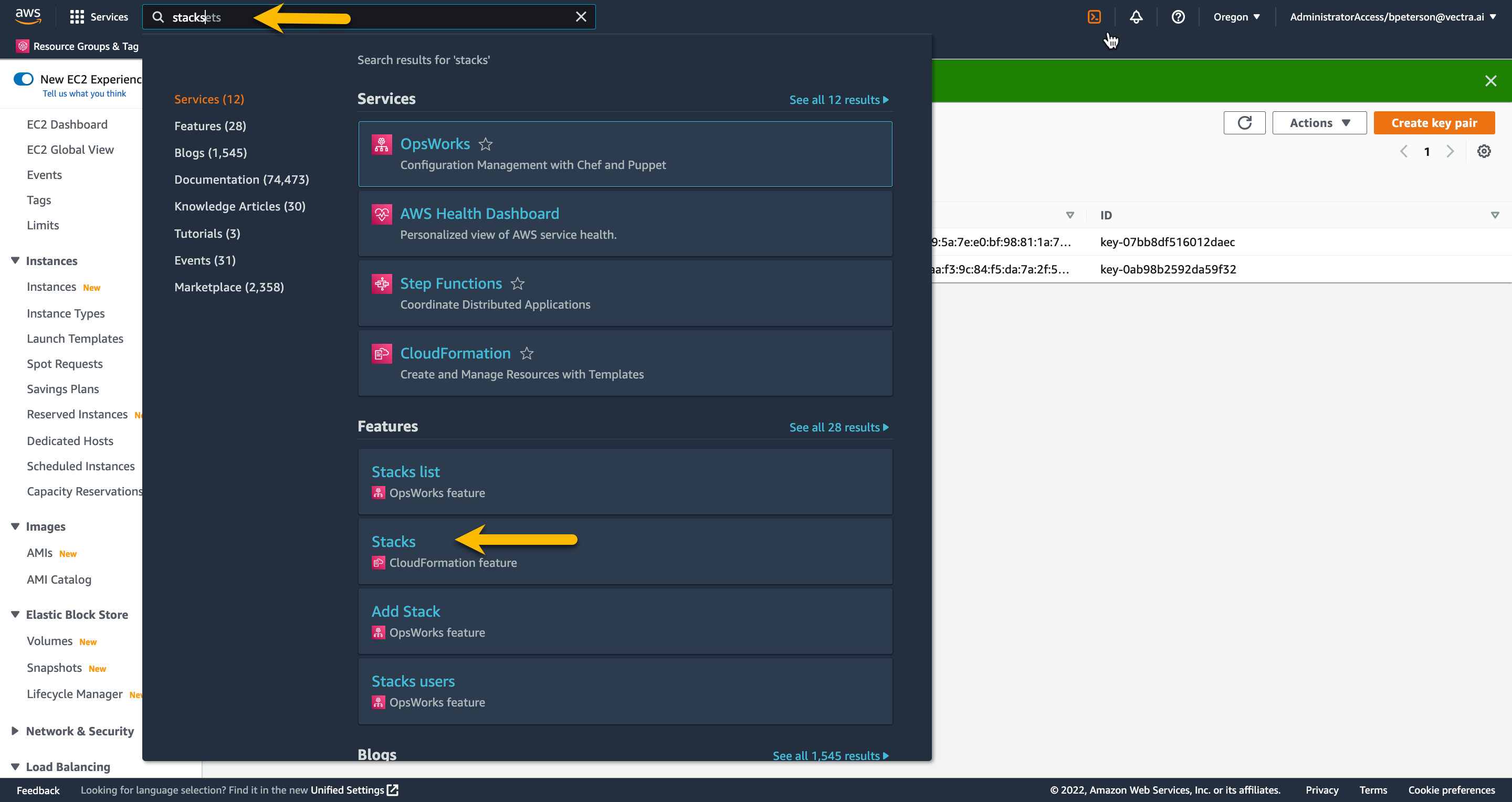

  2. In the AWS Management Console navigate to the CFT Stacks page by typing stacks in the search field and choose the stacks CloudFormation feature

    Stacks

  3. On the Stacks page press Create stack on the top right. In the drop down choose with new resources (standard)

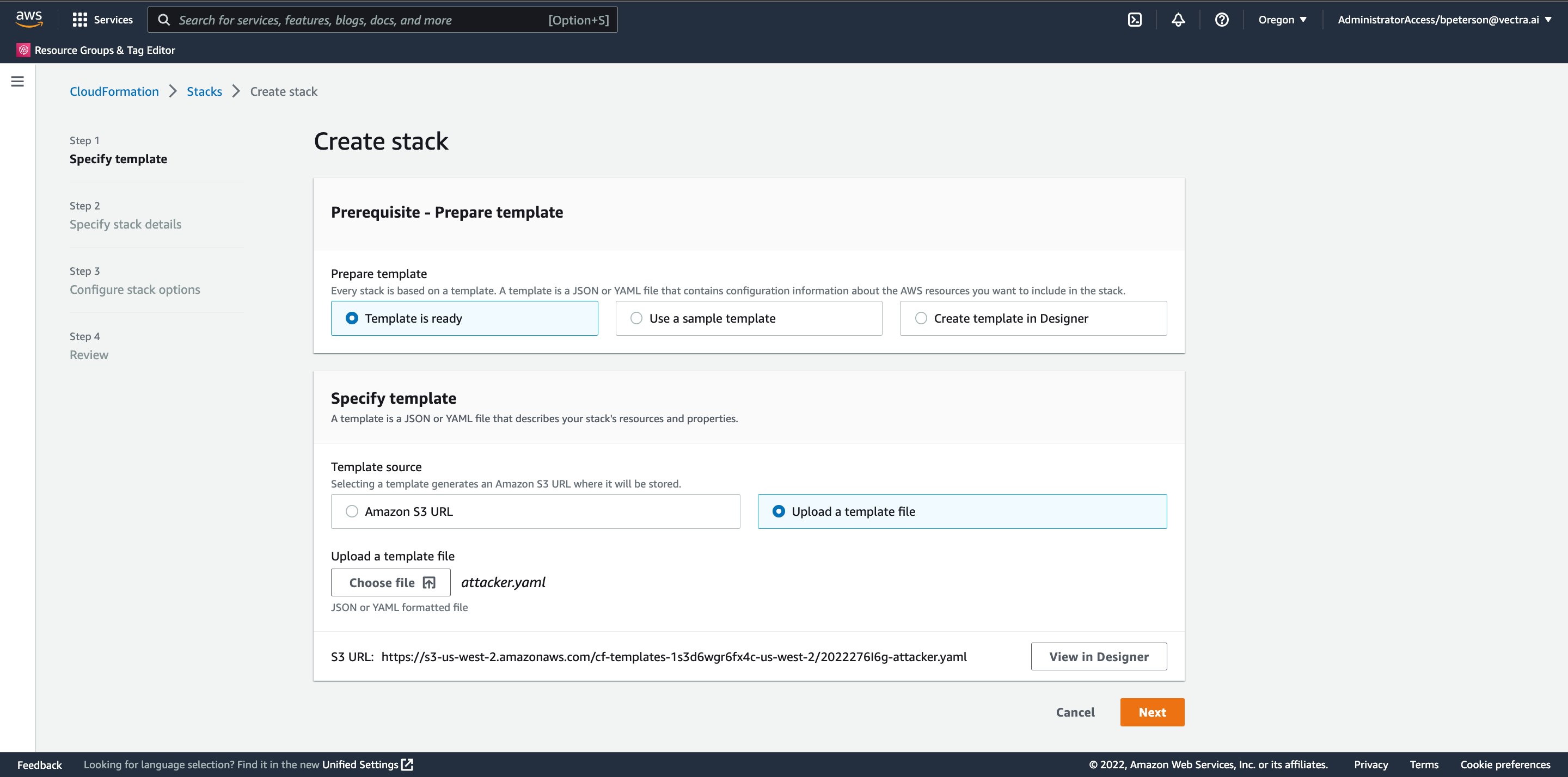

  4. On the Create stack page under Prepare template select Template is ready (default). Under template source choose Upload a template file. Choose your template file you previously downloaded.

    CreateStack

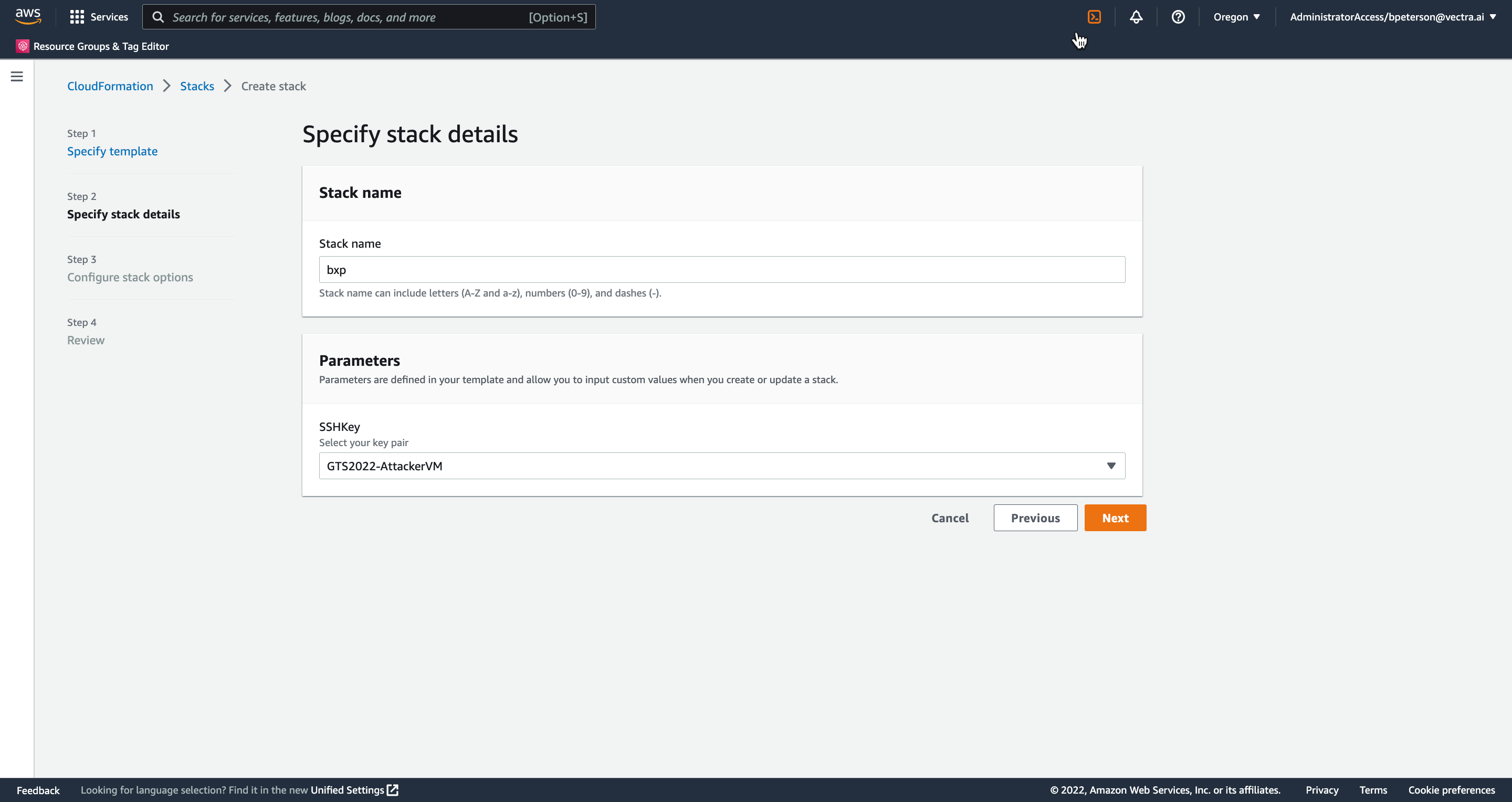

  5. Press Next and enter a stack name of your INITIALS. The CFT will automatically name your EC2 instance the name of your stack

  6. Under Parameters find your SSH key GTS2022-AttackerVM-INITIALS in the drop down and press Next

    CreateStack

  7. On the Configure stack options page leave everything their default values and press Next

  8. On the Review page scroll to the bottom and press Create stack

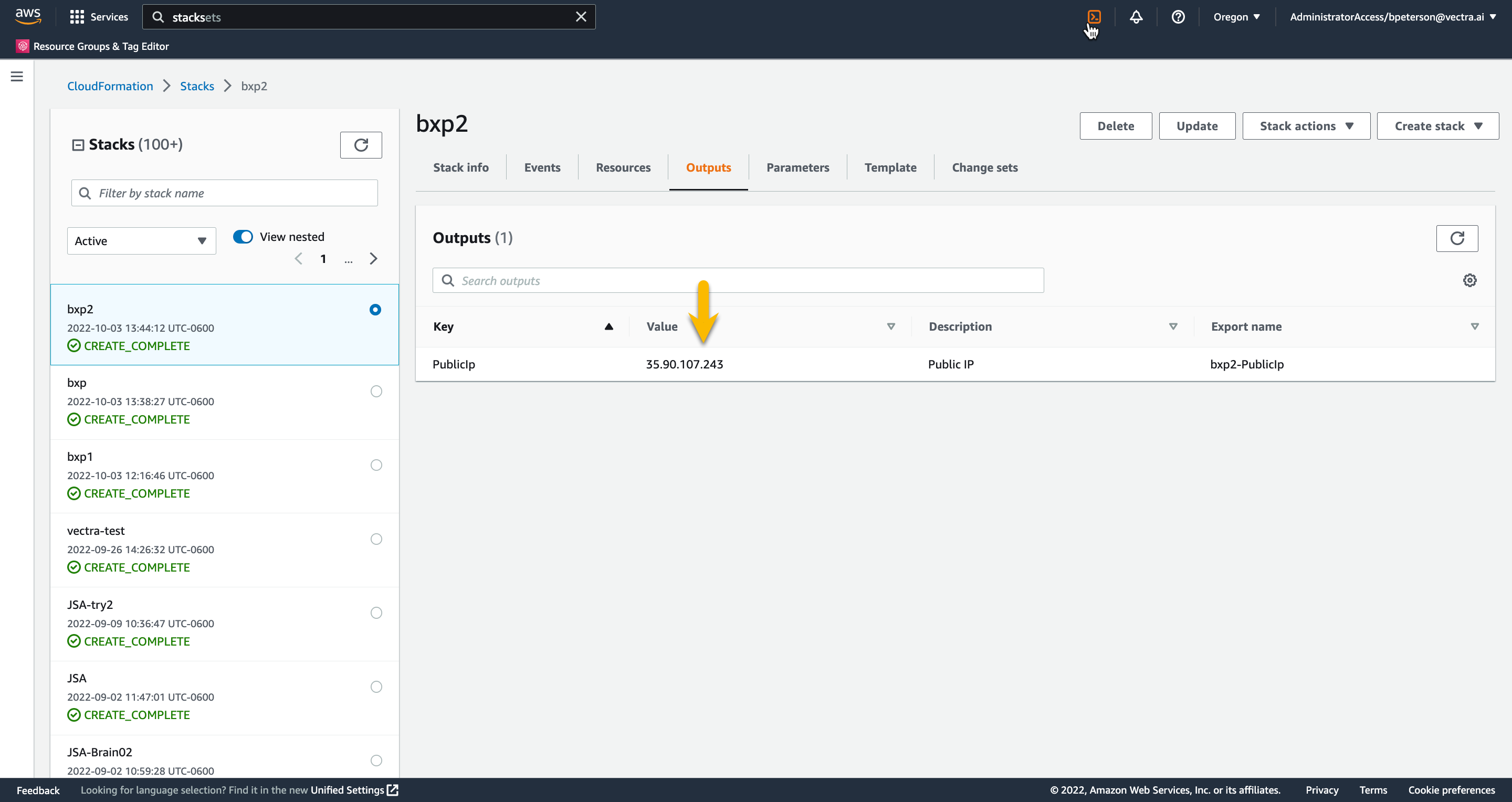

  9. Once the stack complete press the Outputs tab and take note of the IP address

    IP

Using that IP address you should be able to SSH to your attacker VM using your SSH key with the username ubuntu. We will not cover connecting via SSH in this lab. However, an example of this on OSX would be ssh -i GTS2022-AttackerVM-INITIALS.pem ubuntu@35.88.253.243
